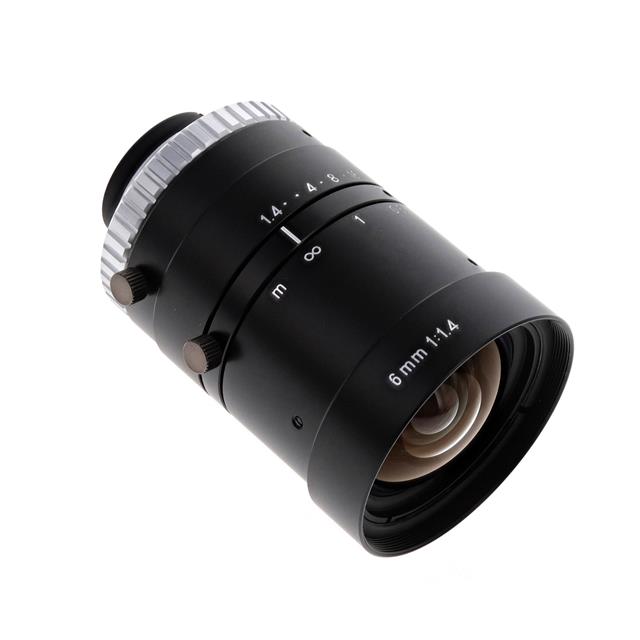

SV-0614H 2/3" 6mm F1.4 Manual Iris C-Mount Lens, 5 Megapixel Rated

2/3" 6mm F1.4 Manual Iris C-Mount Lens

The Omron& VIS Technologies SV-H series focus of delivering a high resolution, makes it an excellent choice for cameras that utilise up to 2/3" sensors. The bright F number helps illuminate the view even in a poorly lit environment. Designed to suit a large range of working distances, the iris and focus are adjustable, making this series well prepared for almost any application.

• 2/3" sensor support
• 12 models available
• 6 - 100mm focal lengths
• F1.4 brightness
• High Resolution
• All models filter-ready

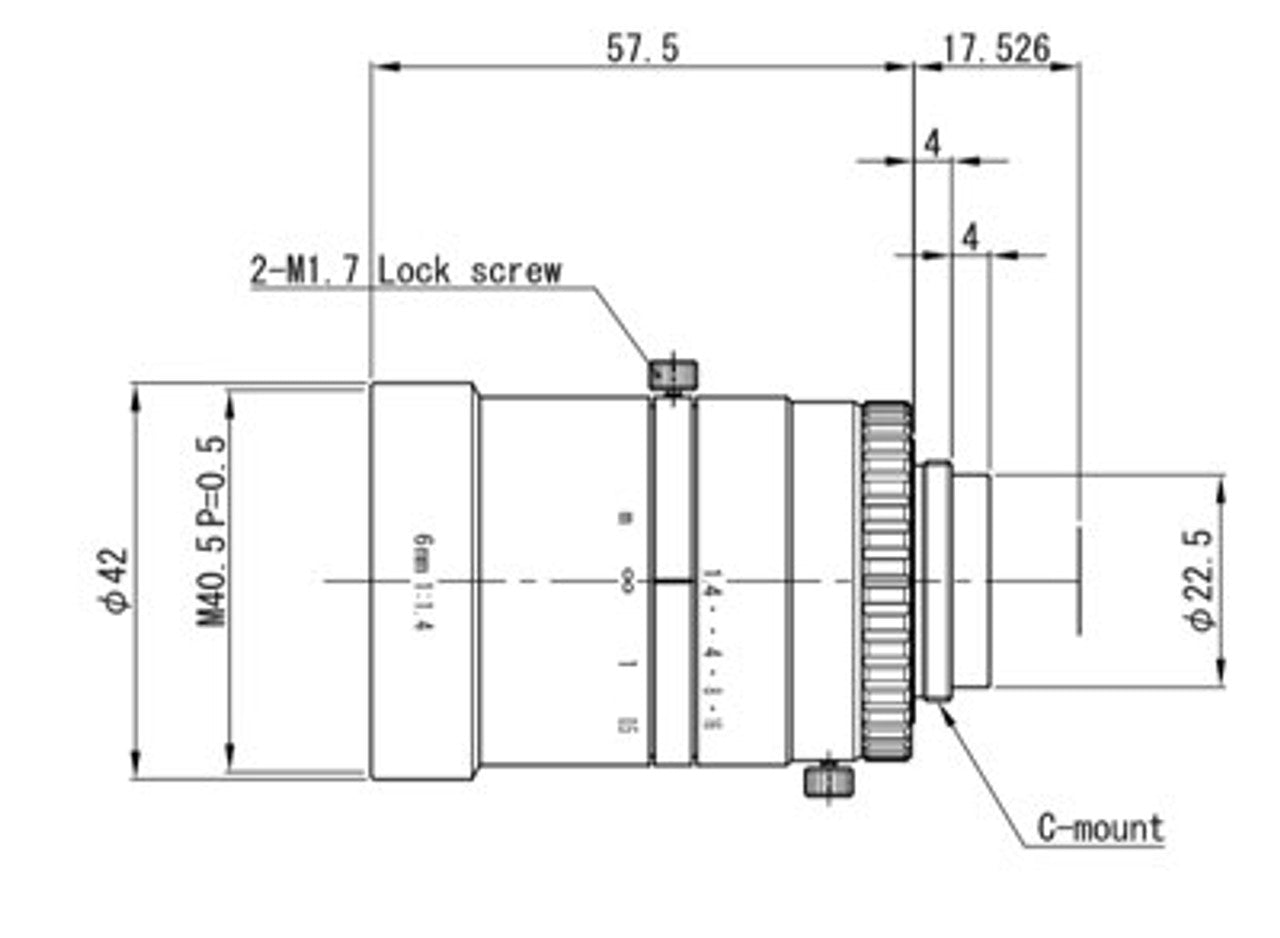

Focal Length (f)6mm Maximum Aperture Ratio1:1.4F/#1.4 ~ 16Angle of view (2/3")56.8° x 71.5° (Diagonal: 83.8°)M.O.D100mmFlange back17.526mmOperation of Iris & FocusManualMountC-mountFilter ThreadM40.5 P=0.5WavelengthVisibleTV distortion (2/3")-0.05%Sensor size (max.)2/3"Weight (approx.)145 gDimensionØ 42 (MAX) x L = 57.5mm
